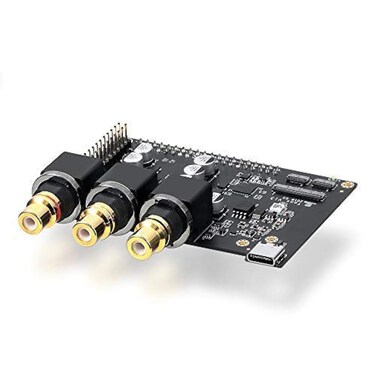

Khadas Tone Board High Resolution Audio Board for Khadas VIMs, PCs and Other SBCs(Generic Edition)

Khadas Tone Board High Resolution USB DAC Designed for Music Fanatic. Khadas Tone Board is an Amazing USB External HIFI Sound Card in Khadas Family. Its Excellent Performance and Compatibility Will Takes the Listening Experience into a Whole New Level. And that’s Just the Beginning… 1. XMOS XU208-128-QF48: 8 xCores, Core Share up to 500 MIPS 2. DAC ES9038Q2M: 32-Bit Stereo Mobile Audio DAC 3. THDN ≤ 0. 000337% @1KHz 4. SNR ≥ 120dB @ 10Hz20KHz 5. DNR ≥ 120dB @ 10Hz20KHz 6. Crosstalk ≥ 127dB @ 10Hz20KHz 7. Frequency Response0. 08 dB @ 10Hz20KHz 8. Sample Rate: PCM: Up to 768KHz @ 32bit. DSD: Up to DSD256 @ 1bit 9. Clock Jitter: Reference Clock Jitter <3ps. Data Clock Jitter <30 ps 10. Audio Formats: APE2/FLAC/OGG/WAV/ACC/ALAC/MP3/WMA… 11. Line Out: 1x Red RCA for Right Channel, 1 x White RCA for Left Channel 12. Indicator: White LED x1 13. Mounting Holes: Size M2 x 5 14. FPC Connector: 30-Pin 0. 5mm Pitch: for 8 Channels Extension 15. FPC Connectors: 10-Pin 0. 5mm Pitch: for VIMs I2S Extension； 10-Pin 0. 5mm Pitch: for OLED Display 16. S/PDIF IN: Up to 192KHz 17. S/PDIF OUT: Supported 18. USB-C Port 19. 40-PIN Header: Generic Version Not Solder 20. 20-PIN Header: Generic Version Not Solder 21. Dimensions: 82. 0 x 74. 5 x 24. 0 mm 22. Compatibility: 23. In the Box: Tone Board VIMs Edition. Screws set. Type-C Cable 24. Others: Android support only 44. 1KHz output due to the Sample Rate Conversion(SRC) resampling implementations. Should also support other Single Board Computers(SBCs).
