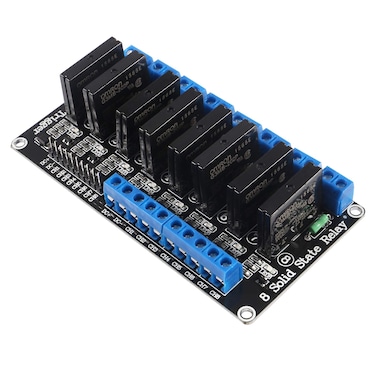

AiTrip 8 Channel 5V Solid State Relay Module Board High Level Trigger for Arduino Uno Duemilanove MEGA2560 MEGA1280 ARM DSP PIC

5V solid state relays per channel 250V 2A, output with resistive fuse 250V 2A Features: 8 channel 2 AMP Solid State Relay board Good for lighting- holiday displays etc The input control signal voltage: (0-0. 5V LOW solid state relay OFF) (2. 5-20V high solid state relays ON) Rated output load: 2A at 100 to 240VAC (50/60Hz) Load voltage range: 75 to 264VAC (50/60Hz) Load current: 0. 1 to 2 AMP Power supply: 5VDC / 160mA (all channel ON) Load type: General purpose Isolation: Phototriac Zero cross: Yes Module interface: Input section: DC: positive power supply (by relay voltage power supply) DC-: connect power negative CH1: 1 relay module signal to trigger the end (high level trigger effective) CH2: 2-channel relay module signal to trigger the end (high level trigger effective) CH3: 3 relay module signal to trigger the end (high level trigger effective) CH4: 4-channel relay module signal to trigger the end (high level trigger effective) CH5: 5 relay module signal to trigger the end (high level trigger effective) CH6: 6-channel relay module signal to trigger the end (high level trigger effective) CH7: 7 relay module signal to trigger the end (high level trigger effective) CH8: 8-channel relay module signal to trigger the end (high level trigger effective) Package list: 1 x AiTrip 8 Channel 5V solid state relay module board.
