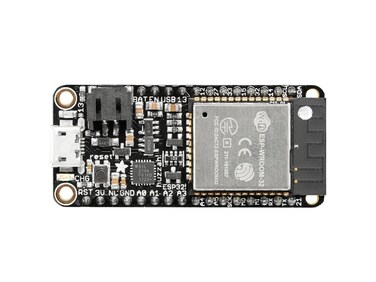

Adafruit HUZZAH32 – ESP32 Feather Board (pre-soldered)

The HUZZAH32 is our ESP32-based Feather, made with the official WROOM32 module. We packed everything you love about Feathers: built in USB-to-Serial converter, automatic bootloader reset, Lithium Ion/Polymer charger, and just about all of the GPIOs brought out so you can use it with any of our Feather Wings. WROOM32 module nestled in at the end of this Feather contains a dual-core ESP32 chip, 4 MB of SPI Flash, tuned antenna, and all the passives you need to take advantage of this powerful new processor. The ESP32 has both WiFi and Bluetooth Classic/LE support. That means it's perfect for just about any wireless or Internet-connected project. Here are specifications from Espressif about the ESP32: 240 MHz dual core Tensilica LX6 microcontroller with 600 DMIPS Integrated 520 KB SRAM Integrated 802. 11b/g/n HT40 Wi-Fi transceiver, baseband, stack and LWIP Integrated dual mode Bluetooth (classic and BLE) 4 MByte flash include in the WROOM32 module On-board PCB antenna Ultra-low noise analog amplifier Hall sensor 10x capacitive touch interface 32 kHz crystal oscillator 3 x UARTs (only two are configured by default in the Feather Arduino IDE support, one UART is used for bootloading/debug) 3 x SPI (only one is configured by default in the Feather Arduino IDE support) 2 x I2C (only one is configured by default in the Feather Arduino IDE support) 12 x ADC input channels 2 x I2S Audio 2 x DAC PWM/timer input/output available on every GPIO pin OpenOCD debug interface with 32 kB TRAX buffer SDIO master/slave 50 MHz SD-card interface support.
