CNCTOPBAOS 3 Axis GRBL Offline Controller Board Remote Hand Control LCD Screen Off-line Control Module for 1610 3018 PRO CNC Router Carving Milling Engraving Machine Offline CNC Controller

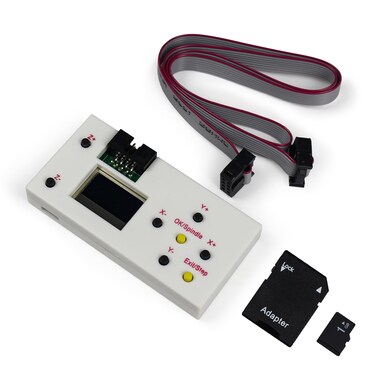

Package include: 1 set of offline hand controller board 1 set of cable 1 set of SD card Specification: Press Zand Z- , the Z axis will move up and down. Press Xand X- , the X axis will move left and right. Press Yand Y- , the Y axis will move Front and Back. Press SPIN : Spindle on (Laser on ), Spindle off (laser off) Press SMOD: return Press Zfor 5 seconds , change the Language to English. Press X- or Xbutton to switch Control：Press confirmation button to access manually controlling page File：Press confirmation button to access file page Set：Press confirmation button to access setting page On the off-line controller, buttons control corresponding actions. SPN is spindle controlling,should press SPIN. Fan is fan controlling, should press SMOD. Common supported formats include nc. tex. tap. Press [Y] [Y-] to select file Press [Ok] to Enter Press [Ok] to begin if you are ready Note:Long press [Exit] to stop machining XYZ: Moving Axis OK/Spindle: Spindle ON/OFF Exit/Step: Change Step/Exit (long press) How to increase the spindle power: After pressing the spindle button, press and hold the OK button and the Zbutton simultaneously to increase the speed. How to decrease the spindle: After pressing the spindle button, press and hold the OK button and the Z- button simultaneously to decrease the speed. Main Page Ctrl: Machine Control File: Use the Gcode file Press [Y] [Y-] to select Press[Ok] to Enter.
