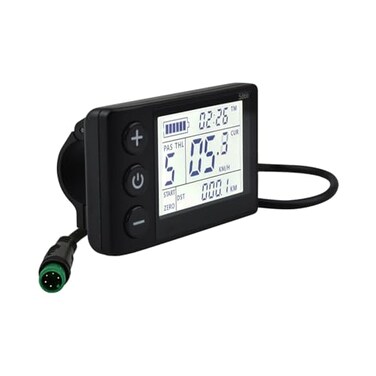

Flylin S866 Electric Bicycle LCD Display Meter, Ebike LCD Display Control Panel

Please note: The default compatibility of our electric vehicle meter is the No. 2 protocol controller, 5-core waterproof wiring. For the specific connection method, please check our wiring diagram. This product also supports 5S/J protocol setting through P20, but the line position function must be correct, the instrument power supply and signal reception and transmission must be normal (special protocols such as KT are not applicable, Confirm the line position: Use a multimeter to measure the female end of the plug. The port with the battery voltage is used to power the instrument. The signal receiving and sending is lower than 5V and the voltage fluctuates. Also, this product uses a mini 5-pin connector, so please make sure it's compatible with yours. , Simple installation and use: The waterproof power cord is 225mm long including the head. Our products are only suitable for electric bicycles installed on handlebars with a size of 22mm. Please install it on the left hand side of the bicycle/electric bicycle, and then tighten the screws to adjust, Adjustable voltage: Please note that the default value of the meter output voltage is 36V, and the product can be applied to 24V/36V/48V/52V/60V bicycles. You need to adjust it when it can be used normally. You only need to adjust the voltage through P03 for normal use, LCD backlight display: This large LCD eBike display makes it easier for you to view data on the panel, and the status will be more intuitively displayed on the large screen. The backlight allows you to see the screen clearly even in a dark environment, and the operation is fast and convenient. If there is no light, please check whether the line position is consistent, Widely compatible: Our electric vehicle meter is suitable for most electric bicycles. It is lightweight, waterproof and durable. But you must confirm whether it is compatible before use. If you have any questions, please directly and we will give you a perfect solution within 24 hours.
