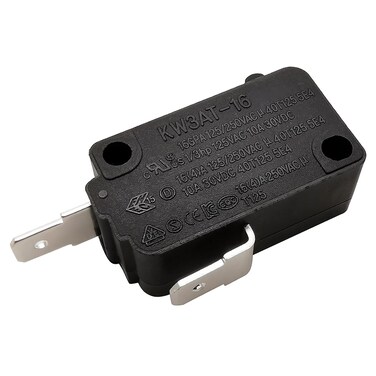

HiQltyla Microwave Oven Door Switch Replacement Part, 16A 125VAC, KW3A-16, Normally Closed - 1Pc

Universal Microwave Door Switch Model Number: KW3AT-16 Compatible Model Numbers: KW3A-16 SZM-V16-FD-63 SZM-V16-FA-63 3B73362F PS3522738 Character: Normally Closed Outline Characteristic: Basic Form Material: High Temperature Resistant Plastics Color: Black Current: 16A Voltage: 125V / 250V Mechanical Life: 5E4 (50000 times) Temperature Resistance: 125℃ Terminal Type: Quick-connect Terminal187(t=0. 8) Shell Dimensions: 1. 09" x 0. 63"x 0. 41"(27. 8 x 15. 9 x 10. 3 mm) Single Weight: 0. 22oz / 6. 3g Specifications: Insulation Strength: 100MΩ Min Test Voltage: AC1000V/2000V Contact Resistance: 50mΩ Max Operating Force: 2N Max Release Force: 0. 5N Min Operating Position: 14. 90. 4mm Movement Differential: 0. 4mm Max Package Includes: 1x Microwave Door Switch (Normally Closed) Note:There was two different Character Types of Microwave Door Switch: Normally Closed, Normally Open. One Switch is for the Top Sensor and the other is for the Bottom Sensor, Pls make sure which type you need before order.
