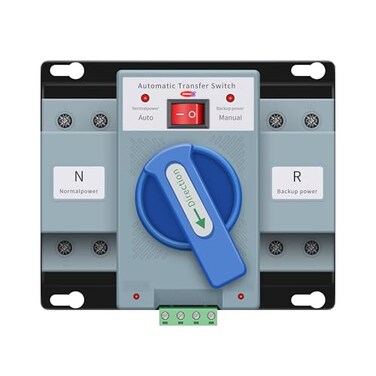

JONAS C AC110V 2P 63A ATS Dual Power AutomaticManual Transfer Switch

Dual Power Transfer Switch Functions and Features This Transfer Switch is a PClevel infrequent switching switch mainly used for automatic or manual conversion of dual power supplies and can test whether the common power supply or backup power supply is normal When the common power supply A is abnormal the backup power supply B is quickly switched and put into use within 2 seconds to ensure the continuity reliability and safety of power supply When the common power supply returns to normal it automatically switches from the backup power supply to the common power supply Both power supply A and power supply B can be connected to the mainsgeneratorphotovoltaic Automatic and Manual Mode Operation To switch to manual operation the red button switch located at the top must be set to the Manual position the device can then be switched between the primary and backup modes by rotating the handle When the control mode is set to the Auto position the transfer switch enters the automatic operating state and the primary power source takes priority in supplying power Comprehensive Protection Functions The switch supports multiple protection functions including short circuit overload phase loss and undervoltage protection This series of automatic transfer switches is suitable for 5060Hz dual power grid The working current is 63A 110V50Hz Undervoltage value 85V Recovery value 95V Overvoltage value 145V Recovery value 130V 5V Please select the product with the corresponding specifications according to the actual working voltage you need Technical Parameters and Specifications Usage class AC33B Temperature range 5C to 40C average temperature not more than 35C in 24 hours Rated shortcircuit breaking capacity 3kA Rated shortcircuit connection capacity 3kA Conversion time less than 3S Control voltage of the changeover switch is AC110V Mechanical life of the switch is 3000 times electric life is 1500 times Rated insulation voltage U500V Rated working current 63A Under normal circumstance
