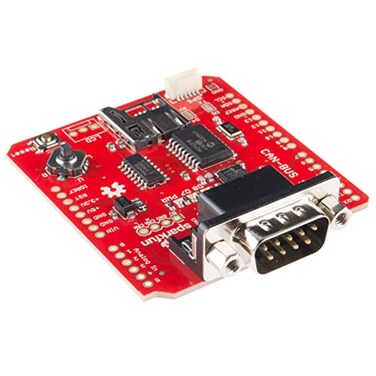

SparkFun CANBus Shield Socket for EM506 GPS Module High Speed SPI Interface 10 MHz CAN v20B up to 1 Mbs

The CANBUS Shield compatible with arduino or Redboard can be provided with CANBUS capabilities and allows you to hack your vehicle This shield allows you to poll the ECU for information including coolant temperature throttle position vehicle speed and engine rpms You can also store this data or output it to a screen to make an indash project The CANBUS Shield Features CAN v20B up to 1 Mbs High speed SPI Interface 10 MHz Standard and extended data and remote frames CAN connection via standard 9way subD connector Power can supply to Arduino by subD via resettable fuse and reverse polarity protection It uses the Microchip MCP2515 CAN controller with the MCP2551 CAN transceiver CAN connection is via a standard 9way subD for use with OBDII cable Ideal for automotive CAN application The shield also has a uSD card holder serial LCD connector and connector for an EM506 GPS module Note A DB9 Cable is not included with this shieldNote This product is a collaboration with SK Pang Electronics A portion of each sales goes back to them for product support and continued development.
