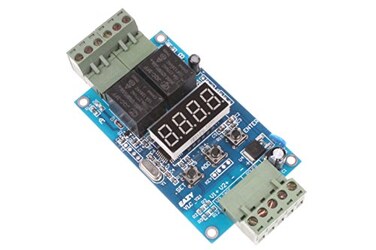

NOYITO 30Step Programmable Time Relay Control Board MultiSegment Setting ON Off Switch MultiGroup Timing 2Channel Control Board 24V

The 30Step controller can be set 30 groups time steps each step the relay switch state can be set to ON or OFF use external input voltage or switch signal user can realize a variety of control function The controller can be used to control two solenoid valve linkage control pneumatic equipment motor reversing dual load intermittent work etc Digital LED display set by three buttons easy to use has reset function Highperformance microcontrollers industrialgrade reliability high process stability low power digital display can be shut automatically the minimum operating current at 7mA12V with reverse power protection surge current shock protection Each group of relay has common and normally open normally close contacts two sets of conversion 30 groups time each timer range 01 seconds 9999 minutes adjustable the total number of cycles are adjustable from 0 to 9999 0 means run loops all the time High level signal trigger launch or forcing relay closeopen All settings can be saved.
