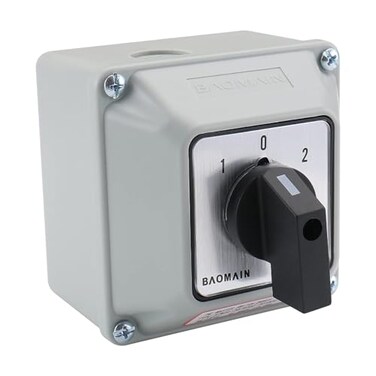

Baomain BAOMAIN 20A 2Phase 3Position Rotary Changeover SwitchWider Box

Versatile 3Position Control Features a clear 102 ONOFFON indexing mechanism with 8 terminals Specifically designed for manual motor reversing and generator transfer systems ensuring safe and synchronized circuit switching for industrial or DIY projects Premium Silver Alloy Installation Tip Equipped with highconductivity silver alloy contact points for efficient power transmission Pro Tip for Safety To prevent localized overheating and potential melting please ensure all screw terminals are tightened firmly during setup loose connections significantly increase electrical resistance and are the leading cause of heat buildup Industrial Grade Specifications Rated for a 660V Insulation Voltage Ui and a 20A Thermal Current Ith The housing is constructed from reinforced flameretardant PC material providing excellent heat resistance and ensuring hightemperature insulation safety under standard operating conditions Wider Enclosure Wiring Suggestion The Wider Box design 315 x 315 x 37 provides more internal room than standard compact versions Note For the best experience and to prevent terminal strain we highly recommend using flexible stranded wires 1412 AWG instead of rigid solid cables Visual Wiring Map Included This 8terminal configuration supports 2phase control We have provided a detailed Truth Table Wiring Logic Map in the product images to guide you through the terminal connections and ensure successful continuity.
