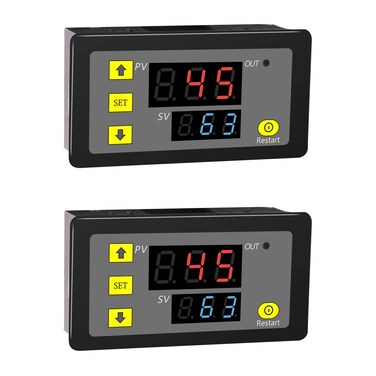

AITIAO 2 Pcs Timer Delay Relay DC 24V 20A Relay Module Dual LED Digital Display Programmable Cycle Timer Switch On Off Control Timer Relay

Parameter: Timing range: 0-999s, 0-999m, 0-999h Supply Voltage: DC 12V Installation size: about 72*39*23mm (L*W*H) Power Consumption: <0. 6W Max power: working current-20A(max), power-1500W(max) Product functions: timing, delay, time cycling etc. Application: 1: Used for timing, delay, cycle timing, intermittent timing and other occasions. 2: Used for rafting fishing machine, slow down machine 3: Used for timer switch, timer alarm control panel Features: 1. Double LED display, you can set two timing times for T1 and T2. It is very useful for you. 2. Choose three timing timing times: P0--0: T1 timing for seconds (0-999s), P0--1: minute (0-999m), T1 timing, P0--2: T1 timing for time (0-999h). You can set the timing mode according to your needs. 3. 6 operation modes for you to choose. Note: Please be careful when using it for the first time. Need to wait 6 seconds after setting data. The module will save the set after 6 seconds. How to use: 1. Short press button "SET": enter time setting mode, the screen will flash. Set T1 when flashing. Press the "SET" button, the screen will flash again. Set time T2 while flashing. Then save the set in two ways: waiting for 6S and stop blinking screen. System will automatically save time setting up. press "SET" 2. Long press the button "SET": enter the parameter setting mode. There are parameters for selection: P0 and P1. Short press "SET" to choose P0 or P1. Parameters can be set under the parameters P0, P1, button up and button down 3. Restart key: restart the function. It will work fine after timer ends. If you need to work again, short press the "Restart Key" to restart the timer. Package Includes: 2 x Digital Timer Del.
