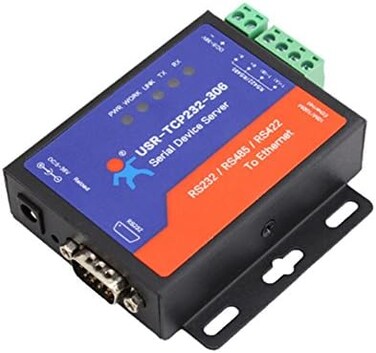

generic ?USR-TCP232-306 Serial to Ethernet Device Serial RS232/RS485/RS422 to Ethernet TCP/IP Server with DHCP

USR TCP232 306 is a multi serial port ethernet converterwhich can realize bi directional transparent transmission between RS232/RS485/RS422 and Ethernet User can directly process data interaction through network and device to realize remote data acquisition remote control and management Features Auto MDI/MDIX RJ45 port with 10/100Mbps Work mode: TCP Server TCP Client UDP Client UDP Server HTTPD Client Baud rate of serial port can be configured from 600 bps to 2304 Kbps supports check bit of none odd even mark and spaceHeartbeat package mechanism to ensure connection is reliable put an end to dead linkUser defined registration package mechanism check connection status and use as custom packet headerUnder TCP Server Mode the connection number with client can be randomly set from 1 to 16 default number is 4 IP has been connected can be shown according to connectiong with calculating send / recceive dat When connection number reaches a maximun the new connection is kicked off the old one can be configured by user Parameters can be configured by built in webpage AT command serial port procotol and network procotol Setting procotol is avaliable to integrate into user. s software Supports TCP client short connection function user defined the disconnected timeDevice restart if no data transmission or timeout User defined the restart time If data buffer needs to clear configuration before TCP connection establishment Supports DHCP automatically obtain an IP address and query IP address via serial setting protocolThe global unique MAC address user defined MAC addressDNS functionDNS server addres can be definedFirmware can be upgraded by networkProvide Virtual com software Restore factory setting through software or hardware Running across the gateway switches or routers Can work in LAN also can work in the Internet.
