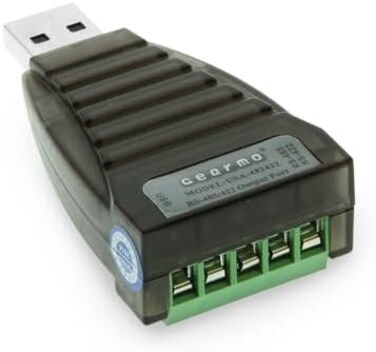

Gearmo GearMo Mini USB to RS485 / RS422 Converter FTDI CHIP with Screw Terminals and Windows 10 Support

This Windows 10 supported RS422 / 485 serial adapter uses an FTDI chipset with terminal wire connection. The USB connector is a Type A standard USB plug. The mini USB to serial converter is compact and portable. Features and Specifications RS 485 Signals: T/R, T/R , GND RS 422 Signals: TX, TX , RX, RX , GND Modes: Asynchronous, Point to Point, Point to Multipoint, 2 Wire (Half Duplex, 4 Wire (Full DuplexTransmission Rates: 300 to 921,600bps, automatic detection of signaling rate Load Capability: 32 devices in Point to Multipoint topology. Transmission Distance: RS485/422: 1. 2km (all ratesUSB: 5 Meters Interface Protection: 600W Lightning Strike and surge supression, 15KV ESD protection Signaling Diagnostics: LEDs for POWER, TX and RX Dimensions: 62x33x19 mm Working environment: 40C to 85C, RH 5% 95% Chipset: FTDI FT232RL OS Supported: Windows 7, 8, 10.
