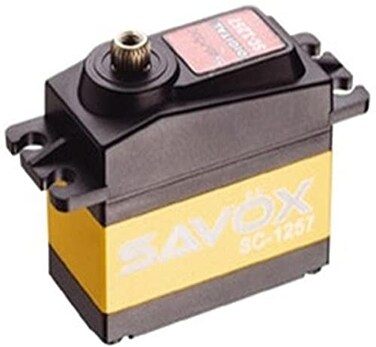

Savox SC1257TG Super Speed Titanium Gear Standard Digital Servo

Product Description

Dimensions(mm): 40.3x20.2x37.2
Weight(g): 52.4
Speed(@4.8V sec/60): .09
Torque(@4.8V oz-in): 111.1
Speed(@6.0V sec/60): .07
Torque(@6.0V oz-in): 138.9
Gear: Titanium and Aluminum
Bearing: 2BB
Case: Aluminum
25 Tooth Spline
Frequency: 250-333hz
Pulse Width Frequency: 1520
Operating Temperature Range (C) -10-50
Operating Voltage Range (V): 4.5-6.0
Running current (at no load): 100 mA @ 4.8V
Running current (at no load): 120 mA @ 6.0V
Stall current (at locked): 4000 mA @ 4.8V
Stall current (at locked): 5000 mA @ 6.0V
Idle current (at stopped): 5 mA @ 4.8V
Idle current (at stopped): 5 mA @ 6.0V
Limit angle: 200°±10°
Connector wire gauge: ＃22 AWG
Connector wire length: 250 ±5 mm
Horn gear spline: 25T
Control system: Pulse width modification
Amplifier type: Digital Controller
Operating Trave: 100° (when 1000→2000 μsec)
Neutral position: 1500 μsec
Dead band width: 3 μsec
Rotating direction: Counterclockwise (when 1500→2000 μsec)
Pulse width range: 800→2200 μsec
Maximum travel: Approx 130° (when 900→2100 μsec)

From the Manufacturer

This is the Savox SC-1257TG Super Speed Titanium Gear Digital Servo. Combines leading edge technology with super high 12 bit (4096) resolution and titanium gears. Super light-weight. Coreless motor provides high speed, incredible efficiency, and low power consumption. Extremely strong titanium gears. The aluminum case design not only looks good but also allows for lower operating temperatures. Our servos are totally green � from materials to production. Ideal for CCPM on 600 and 700 class heli, steering servo on 1/10 scale buggies.
