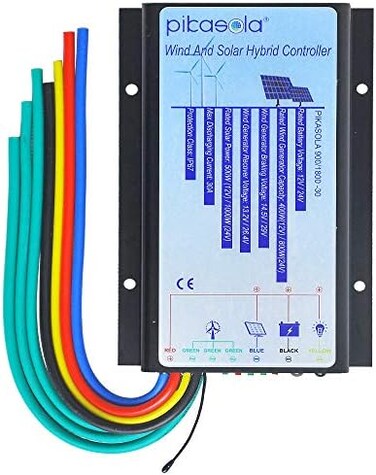

Pikasola Hybrid WindSolar Controller, 30A, 12V/24V Battery Auto Match, Max 800W Wind1000W Solar, MCT Charging, PWM Technology, IP67 Waterproof, Aluminum Alloy Shell.

Part 1 : Note 1. Correct connection sequence: 1pls connect the wires between battery and controller 2pls connect the wires between wind and controller 2. Usable battery: This model only used for GEL and leadacidbattery. If you will connect lithium battery，please buy our upgrade hybrid controller. searchB07Z5QZ6RQ Part 2:Technical Parameters Wind turbine power：0600W Solar Panel power:0400W Charging：41. 6A Control mode: wind turbine generator mode is MPPT chargefunction, solar panel mode is PWM Boost charge: Flexible independent stepup circuit(optionalDisplay: with LCD screen solar charge controller Equalization charge：14. 4V1%(12Vor 28. 8V1%(24V Floating Charge：13. 8V1%(12Vor 27. 6V1%(24V Equalization charge recovery：13. 2V1%(12Vor 26. 4V1%(24V Temperature Compensation：24mV/℃(12Vor 48mV/ ℃(24VDisconnect(DC: 10. 8V1%(12Vor 21. 8V1%(24VRecovery(DC: 12. 3V1%(12Vor 24. 6V1%(24VShut off(DC: 16V1%(12Vor 32V1%(24VRecovery (DC: 15V1%(12Vor 30V1%(24VWorking Temperature：25℃~55℃ Environment humidity：0~90%, No condensation Production type: Lightning, solar cells, antianticharge ,battery opencircuit , battery reversal , over speed and overvoltage softautomatic brake , overload. Part 3:Package including 1 pc controller, 1 pc dump load resistor ,1 pc operation Manual ,1 pc extra gift kit.
