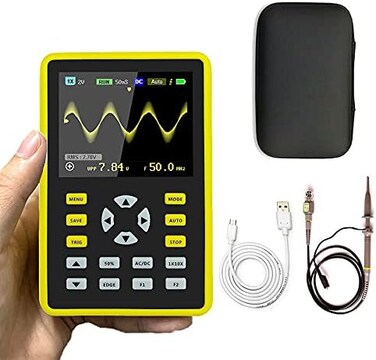

Mivofun Mini USB Digital Oscilloscope 5012H 2. 4'' IPS LCD 500MS/s Sampling Rate 100MHz Bandwidth Support Waveform Storage Professional Handheld Oscilloscope Kit with Protective Case.

Feature: 5012H is a versatile, practical, costeffective handheld oscilloscope for the maintenance industry and the RD industry. Intelligent antiburn,1X Can withstand up to 600V withstand voltage Realtime sampling rate up to 500MS/s and 100MHz analog bandwidth. Display highdefinition LCD screen 2. 4inch 320*240 resolution IPS. With full trigger function, it can be used freely for both periodic analog signals and nonperiodic digital signals. Equipped with highefficiency onebutton AUTO, easily display the measured waveform. Builtin 64M storage space, the maximum storage of 2000 waveform picture Powerful waveform file manager, support for thumbnail browsing, viewing, detail viewing, page turning, deletion. Builtin 3000mah lithium battery, can be used continuously for 8 hours when fully charged. Ultra small body with Antislip antidrop silicone sleeve, easy to carry. Specifications: Number of digital channel: 1 Analog bandwidth:100MHz Maximum real time sampling rate:500MS/s Vertical sensitivity: 50mV/div~100V/div Horizontal time base range:50S/div~6nS/div Maximum test voltage:80V(1X probe, 800V (10X probeStorage:64MB Storage depth:128KB Input resistance:1MΩ ADC accuracy:8 bits Coupling mode:AC/DC Trigger mode:Single,Normal, Automatic Trigger edge:ascending/descending edge External trigger voltage: 0~80V Display: 2. 4 inch, 320*240 IPS process Power Supply: 3000 mAh lithium battery Item size: 114*74*33mm / 4. 5*2. 9*1. 3in Item weight: 300g Package list: 1 * Oscilloscope Host 1 * Matching 100MHz Probe (1X and 10X1 * Micro USB Cable 1 * User manual.
