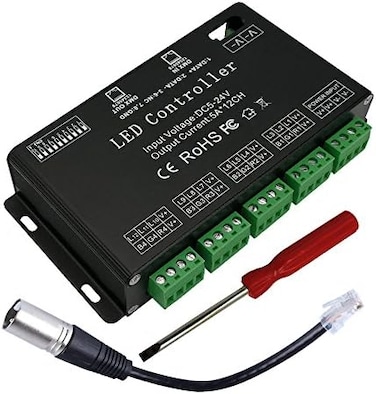

GIDERWEL 12 Channel DMX Decoder RGB LED Controller 60A PWM DMX512 Dimmer Driver for RGB LED Strip and LED Module Light DC12V-24V

12 Channel DMX512 Decoder Introduction: Welcome to use the 12CH constant decoder, which take advantage of advanced microelectronic control technology. This technology changes the international fashion,DMX512/1990 standard digital control signals into analog control signals. There are 1 ~ 12 output channels; each channel can achieve 256 control levels. This constant decoder is used when DMX512 control equipment control general LED lighting. Products Performance: Input Power: DC5V~DC24V Maximum load current: 5A ×12 Channels Maximum power load: 300W(5V720W(12V1440W(24VOutput gray level: 256 Input Signal: DMX512/1990 Output signal: 12 Channels Constant PWM Output DMX : 12 Channels DMX512 socket standard RJ45; Ethernet port and standard XLR 3 caron plug DMX512 socket standard RJ45 Engine size: L6. 1in*W3. 5in*H1. 2in Package include: 1 x DMX decoder 1 x DMX cable Basic functions: There are 12 output channels, can connect with single or RGB lamps 0 100% dimming output, each channel 256 gray levels International standard DMX512 input protocol, address code set by DIP switches; Wide voltage DC input DC5V ~ DC24V; Each Decoder occupied by 12 DMX address.
