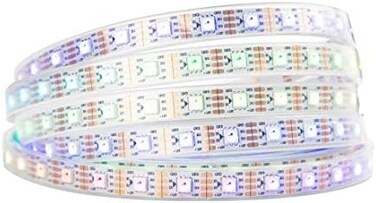

BTF-LIGHTING WS2815 (Upgraded WS2812B16.4ft 300 Pixels Magic Dream Color Individually Addressable RGB LED Flexible Strip Light 5050 SMD Dual Signal IP67 Tube Waterproof DC12V White PCB

Parameter. Light source: 5050 RGB LED. Led Qty: 144pcs per meter. Wave length (NM: R,650nm ; G,520nm ; B,460nm. Color order : G R B(NOT RGB. The gray level: 256. Color: full color (24 bit. View angle: 120°. Voltage: DC 12V. Power: 18W/M total 90W. Waterproof:IP67Waterproof. Recommend Power supply: 12V10A. FPCB board color: White. Dimension: 1000*12*4mm. Life span: 50000hrs Pin Function. 12V: Power Voltage, connect to “12V”. DO: Control data signal output. DI: Control data signal input. BO: Backup control data signal output. BI: Backup control data signal input. GND: DataPower Grounding Technical Features. The control circuit and RGB chip are integrated in a 5050 components, to form an external control pixel. The control circuit and the LED share the only power source. Using the built in signal reshaping circuit to achieve the signal waveform shaping, and no distortion of waveform of signal takes place. Built in power on reset and brown out reset circuits. Port scanning frequency reaches to 2KHz/s. Serial cascade interface. Data receiving and decoding depend on just one signal line. Dual signal wires version, signal break point continuous transmission. If the transmission distance between any two points is less than 3m, another circuit is not needed. When the refresh rate is 30fps, cascade numbers are far more than 1024 points. Data transmitting speed is up to 800Kbps. Package. 1x 3. 2ft 144 pixels WS2815 led strip. 1x 4pin male connector. Power supply and controller are not included.
