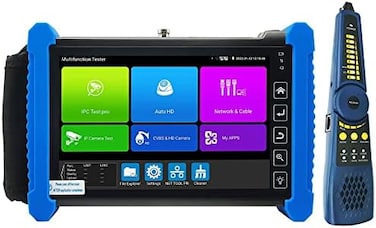

Rsrteng CCTV Camra Tester,IPC-7600CADH Plus 8K 32MP IP Camera Tester with Cable Tracer 4K 8MP AHD CVI TVI CVBS Coaxial Camera Tester 7” Touch Screen Monitor Support HDMI VGA TDR Audio POE RS485

Model: IPC 7600CADH Plus Display:7 inch touch screen,1280*800 resolution. Video Mode: IP camera test:H. 265/H. 265main stream 8K 8160x3616 24FPSH. 264 main stream 4K 4000x3000/3840x2160 30FPS, IP Discovery/Quick OVIF/Non OVIF IPC test /RTSP play /Client APK. Hik and DH camera test tool: Modify the user name, password and IP parameters. RS485 control,Baud 600 115200bps Coaxial HD camera test: 4K 8MP TVI CVI AHD camera test, 3840 x 2160P, UTC control/ call OSD menu HDMI input: 4K 3840x2160 30FPS HDMI output:4K 3840x2160 60FPS VGA Input: 1280x1024P 60FPS Visual Fault LocatorOptical Power Meter:N/A(7600COVTADHS supportTDR cable test:N/A(7600COVTADHS supportUpgraded Digital Cable tracer: Search BNC cable, network cable and telephone cable from the mess cables, more accurately. PD Power Test. RJ45 cable TDR test:Test cable pair status, length, attenuation, reflectivity, impedance, skew etc. measurement range 180M. UTP cable test: Test UTP cable connection status,and display on screen. Power output: PoE,IEEE802. 3at max 30W; DC: DC5V/2A, DC12V/3A, DC24V/2A power output interface. Battery: Built in 7. 4V Lithium polymer battery, 7800mAh/57. 72Wh Fast charging,after charging 4 hours,normal working time 11 hours. Dimension/Weight: 8in x 5. 5in x 1. 8in /2. 1lb;.
