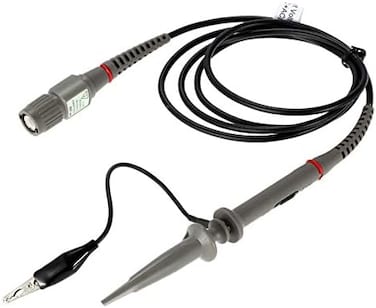

Hantek PP-200 1x 10x 200MHz Oscilloscope Clip Passive BNC Scope Clip Probe

Integral injection molding makes the usage more flexible and the oscilloscope able to adapt more testing situations. Attenuation ratio: 1x and 10x optional. Compatible with domestic and international digital and analog oscilloscopes in relevant frequency. Features: PerformanceCharacteristics Attenuation ratio: 1× and 10× optional. Portable design according with ergonomics. Integral injection molding makes the usage more flexible and the oscilloscope able to adapt more testing situations. Safety standards: it has passed the CE Attestation of European Community. Specifications: Attenuation:x1 x10 Input resistance:1MΩ: 10MΩ Input capacitance: x1: 85pF 115pF x10: 18. 5pF 22. 5pF Compensation scope: 15pF 35pF System bandwidth: x1: DC 6MHz x10: DC 200MHz Input voltage: x1:200V DCPeak AC x10:600V DCPeak AC Weight:55g Cable length:120cm Temperature scope:Operation: 10℃ 50℃ Not Operation: 20℃ 75℃ Humidity: ≤85% (Relative humidityApplication Fields: Compatible with domestic and international digital and analog oscilloscopes in relevant frequency. Measurement in intermediate and low frequency signals. Package Including: Accessories included by PP series passive voltage rapierOperation manualAdjusting tool: adjusts compensation capacitance to assure the rapier match with oscillograph. Contractive type acuminate hook12cm earth wire with alligator clip3 pairs of colorized cable markersLocating sleeve adapts to IC testing.
