Dinkle Assembly Kit DK10N Red/Black 10 Gang with Jumpers DIN Rail Terminal Blocks, 6-20 AWG, 60 Amp, 600 Volt

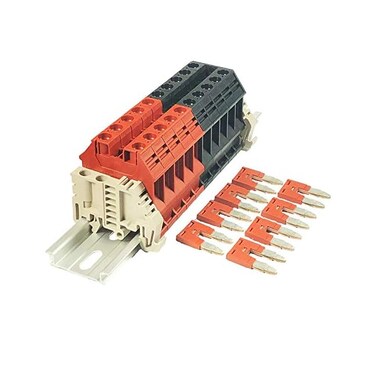

This assembly kit includes 5 DK10N BK Dinkle terminal blocks 5 DK10N RD Dinkle terminal blocks 2 SS2 end brackets and 1 DK10NC BK end cover 8 DSS10N 02P jumpers all mounted on a 7 piece of aluminum RoHS rail These are 10 separate circuits but you can use the jumpers to make them in common Fully customizable. Technical Data UL Rated Voltage: 600V Rate Current: 60A Conductor Cross section Solid AWG: 20 6 Conductor Cross section Flexible AWG: 20 6 Rated Impulse Withstand Voltage: 8KV Torque N m: 13 Screw: M4 Wire Strip Length: 12 14mm Insulating Material: PA TxHxW mm: 10 x 493 x 429 Individual Blocks DIN Rail mm: 35 32 Jumper/Bridge: Press fit/Insertion Accepts 49W marking tags.
