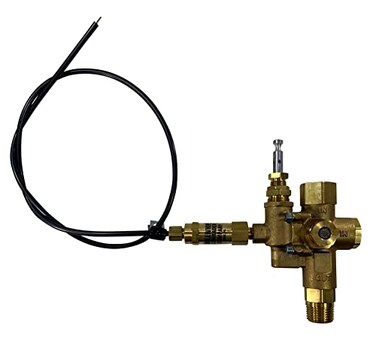

PRO-EDGE INDUSTRIAL PNEUMATICS AND CONTROLS 12 NPT Top Inlet Unloader Pilot Check Valve All in One plus Throttle Control Cable for 65HP Gas air Compressors and Below 095125 PSI 36 Throttle Control Cab

12 Female Top NPT Inlet X 12 Male NPT Outlet Combination pilot valve check valve unloader valve allinone for 65HP Gas Powered Air Compressor Engines and Below Throttle Control For Throttle Control Cable Variation option please select your Throttle Control Cable OAL Overall length from the Variation options above Unloader Valve PSI Options Please select your ONOFF PSI Rating on the Unloader Valve from the variations above The Lower Pressure ON position the unloader will relay to the engine through the throttle control that its time to cycle ON The Higher Pressure OFF position the unloader valve will relay to the engine through the throttle control that its time to Idle OFF If you already have a Throttle Control Mechanism simply select the Valve ONLY Variation option Please see our break down sheet shown in our pics for details regarding each connection port Unloader Valve 30 CFM Flow Rate Pressure differential 10 to 50 psi operating temp 65f to 400f max All brass construction and built for the rigors of outdoor gas compressors Manual hand unloader toggle and brass venting muffler included Throttle Control Cable The throttle control connects from the unloader to your engine throttle arm and acts as a relay notifying the engine of when its time to run or idle Each throttle control connects from the throttle outlet on the valve with a Z Bend connection type on the tip of the cable Min Pressure 80 PSI Max Operating Pressure 500 PSI Retracted Spring Force 67 lbf Stroke Length 065 inch.
