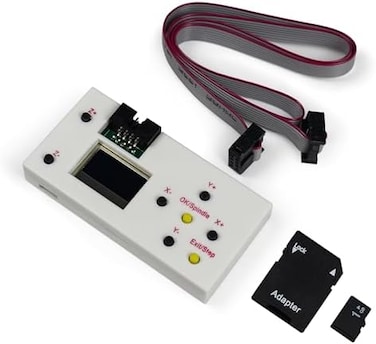

CNCTOPBAOS 3 Axis GRBL Offline Controller Board Remote Hand Control LCD Screen Off-line Control Module for 1610 3018 PRO CNC Router Carving Milling Engraving Machine Offline CNC Controller.

Package include: 1 set of offline hand controller board 1 set of cable 1 set of SD card Specification: Press Zand Z, the Z axis will move up and down. Press Xand X, the X axis will move left and right. Press Yand Y, the Y axis will move Front and Back. Press SPIN : Spindle on (Laser on, Spindle off (laser offPress SMOD: return Press Zfor 5 seconds , change the Language to English. Press Xor Xbutton to switch Control：Press confirmation button to access manually controlling page File：Press confirmation button to access file page Set：Press confirmation button to access setting page On the offline controller, buttons control corresponding actions. SPN is spindle controlling,should press SPIN. Fan is fan controlling, should press SMOD. Common supported formats include nc. tex. tap. Press YYto select file Press Ok to Enter Press Ok to begin if you are ready Note:Long press Exit to stop machining XYZ: Moving Axis OK/Spindle: Spindle ON/OFF Exit/Step: Change Step/Exit (long pressHow to increase the spindle power: After pressing the spindle button, press and hold the OK button and the Zbutton simultaneously to increase the speed. How to decrease the spindle: After pressing the spindle button, press and hold the OK button and the Zbutton simultaneously to decrease the speed. Main Page Ctrl: Machine Control File: Use the Gcode file Press YYto select PressOk to Enter.
