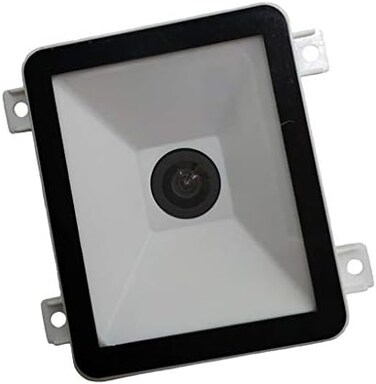

Maikrt Embedded QR Code Scanning Module USB and UART Serial Port Barcode Scanner Identification Module Bar Code Reader for Access Control, Locker Scan Code Payment etc

Applications Fields: Smart Access Control, Locker, Scan Code Gun, Channel Gate, Station Inspection Ticket, Smart Self Service Terminal, Supermarket, Retail Store, POS System, Cash Registers,Warehouse Management, Conference Ticketing, etc Need to Scan 2D Codes Industry Equipment. Technical Parameters: Voltage:5V. Power:0. 9w. Communication interface:UART TTLUART RS232USB Scanning Mode: Omni directional Auto Sense Scan Mode. Parameter setting method: sweep QR code setting parameter or host command setting. Work tips: Buzzer can be connected, LED indicator. Scan angle: 60°,40°,360° (left right, front back, rotation. Decoding type: 1D/2D:Code128,UCC/EAN 128,AIM 128,EAN 8,EAN 13, ISBN/ISSN,UPC E,UPC A,Interleaved 2 of 5,ITF 6,ITF 14,ITF 25,Industrial 25,Standard 25,Code 39,Codabar,Code 93,Code 11,QR Code. Scan Distance:5 mil: 5 to 10cm (adjustable by customer needs. Working temperature: 25°C~55°C. Humidity: 5%~95% (Non condensing. Dimension: 66mm x 65mm x 26. 5mm. Package Includes: 1 x QR Bar code Scanner. 2 x Interface line At the same time match the USB cable and UART TTL serial cable for you to choose the interface type. We will send you the product development materials and setup manual. The product is developed and produced by our company. Please rest assured to buy; Thank you for your support and trust.
