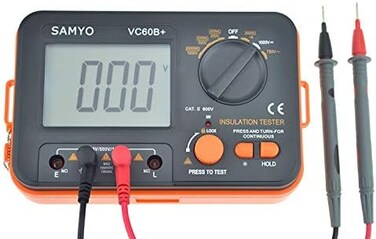

SAMYO VC60BDigital Insulation Resistance r DCV ACV Meter Megohmmeter Megohm with Test Lead

This digital insulation tester is an ideal instrument that can be used in testing insulation of electric machines, cables, electronic equipments, electric facilities, etc. Its main features include: easy to operate, wide test range, highly stable performance, backlit LCD display, data hold and auto power off. Using a shoulder strap, it can be used by both hands. Insulation resistance text range: 0~200MΩ (250V10% test voltage, Resolution: 100kΩ, Basic accuracy:(4. 0%20~200MΩ (500V10% test voltage, Resolution: 100kΩ, Basic accuracy:(4. 0%20~2GΩ (1000V10% test voltage, Resolution: 1MΩ, Basic accuracy:(4. 0%2Resistance text range: 0~2kΩ (Basic accuracy:(1. 0%5, Resolution: 1ΩDCV text range: 0~1000V (Basic accuracy:(1. 0%5, Resolution: 1VACV text range: 0~750V (Basic accuracy:(1. 5%5, Resolution: 1VSpecial function: Continuity alarm: Less than 50Ω10Ω Data hold: Yes LCD backlight: Approx 10Sec. Function protection: Yes Low Battery Indication: Yes Input impedance: 10MΩ Sampling rate: 3 times/Sec. AC frequency response: 40 400Hz Operation mode: Manual range Max. display: 1999 LCD size: 75 x 52mm Operating Temperature: 15℃~55℃ Relative Humidity: Less than 75%RH Power source: 9V, 6 x 1. 5V AA battery(IncludedPackage Content: 1 x Digital Insulation Tester 2 x Test lead 2 x Test Alligator clips 1 x Shoulder strap 6 x 1. 5v batteries (Note:Sometimes we put the batteries in the battery compartment directly, please reposition the batteries correctly before you use. 1 x User Manual.
