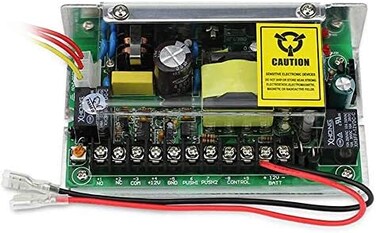

YUHAN Power Supply Control for Door Access Entry System AC 110-240V to DC 12V 5A Worldwide Voltage

Features: Compatible with E/M lock, access controller, exit push button and RFID reader.Set NC/NO outputs, can control various types of electric locks.Based relay control circuit, lock time can be adjusted with 0 -15 seconds, Note: Opening time must set to 0 second when connecting with electric controlled lock.Otherwise electric bolt lock would be Burned Down.Automatic protection function for dangerous situation: overload / over voltage / short circuit.Protection mechanism: power may be temporarily disconnected or the fuse auto insured.Suitable for building intercom, various entrances access control, particularly suitable for all kinds of electric locks.Built-in remote module interface, remote control module can be inserted directly, in order to remote keyless entry for access control system Operative device: E/M Lock, access controller, exit push Button.Support external backpack battery 12V 7AH (Not included) Compact design and light weight, size is only about iPhone 6 plus, weight 0.35KG Worldwide voltage input AC 110 - 240V.Specification: Input Voltage: AC 110-240V (Worldwide voltage) Input Frequency: 50-60Hz Output Voltage: DC 12V Output Current: 5A Power: 50W Operating Temperature: -20C~65C Adjustable Locking Delay: 0~15sec Dimensions: 133Lx73Wx45H(mm) / 5.24Lx2.87Wx1.77H(inch) Weight: 0.35KG Package: 1 x Power Supply 1 x User manual '
