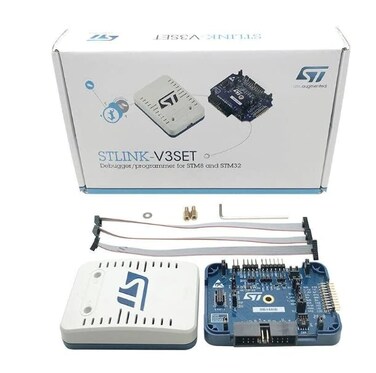

XFCZMG STLINKV3SET Hardware Debuggers STLINKV3 Modular inCircuit debugger and Programmer for STM32STM8

Tool Is For Evaluation OfSTM8 STM32 CoreARM Cortex M Type Debugger Programmer InCircuitInSystem Standalone probe with modular extensions SelfpoweredDirect firmware update support DFU through a USB connector MicroBUSB 20 highspeed compatible interface JTAG serial wire debugging SWD specific features 3 to 36 V application voltage support and 5 V tolerant inputs Flat cables STDC14 to MIPI10 STDC14 MIPI20 connectors with 127 mm pitch JTAG communication support SWD and serial wire viewer SWV communication support SWIM specific features only available with adapter board MB1440 165 to 55 V application voltage support SWIM header 254 mm pitch SWIM lowspeed and highspeed modes support Virtual COM port VCP specific features 3 to 36 V application voltage support on the UART interface and 5 V tolerant inputs VCP frequency up to 15 MHz Available on STDC14 debug connector not available on MIPI10.
