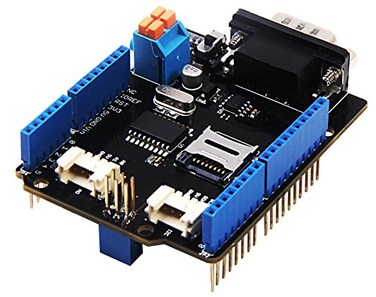

Seeed Studio CANBus Shield V2 Compatible with Arduino for Controller and Transceiver Arduino Shield Adopts MCP2515 and MCP2551

Notice When we produced the new batch of CANBUS Shield V2 the wire of the back pads was embedded inside the PCB although the wire between the pads is now not visible on the outside the inside is still connected if you want to change the wiring of the pads you still need to cut the wiring in the PCB first CANBUS is a common industrial bus because of its long travel distance medium communication speed and high reliability It is commonly found on modern machine tools and as an automotive diagnostic bus Thanks for CANBUS makers are able to hack their cars more conveniently The CANBUS Shield V2 still uses MCP2515 as CANBUS controller and MCP2551 as CAN transceiver OBDII or CAN standard pinout can be selected by switching jumpers on DB9 interface the default pinout is OBDII We add a TF card slot for data storage and the CS pin can be either set to D4 or D5 The INT pin can also be set to D2 or D3 by switching jumpers on the back of the shield CAN BUS Shield Work well with Arduino UNO ATmega328 Arduino Mega ATmega12802560 as well as Arduino Leonardo ATmega32U4 and LinkIt One.
