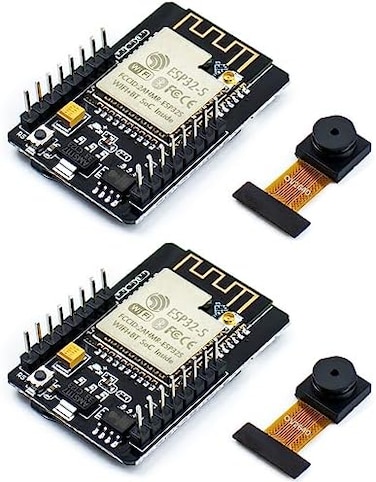

Hosyond 2Pcs ESP32-CAM Wireless WiFiBluetooth Development Board with Camera Module OV2640 Compatible with Arduino

Parameter： Use low power dual core 32 bit CPU, which can be used as an application processor The main frequency is up to 240MHz, and the computing power is up to 600 DMIPS Built in 520 KB SRAM, external 8MB PSRAM Support UART/SPI/I2C/PWM/ADC/DAC and other interfaces Support OV2640 and OV7670 cameras, built in flash Support picture wireless upload Support TF card Support multiple sleep modes Embedded Lwip and FreeRTOS Support STA/AP/STAAP working mode Support Smart Config/AirKiss one click network configuration Support secondary development Specifications Working voltage 4. 75 5. 25V SPIFlash default 32Mbit RAM internal 520KBexternal 8MB PSRAM Support interface (2MbpsUART, SPI, I2C, PWM Support TF card, maximum support 4G IO port 9 Serial port rate default 115200bps Image output format: JPEG (only OV2640 support, BMP, GRAYSCALE Packaging method DIP 16 Power consumption Turn off the flash: 180mA@5V Turn on the flash and adjust the brightness to the maximum: 310mA@5V Deep sleep: The lowest power consumption can reach 6mA@5V Moderm sleep: the lowest can reach 20mA@5V Light sleep: the lowest can reach 6. 7mA@5V Security WPA/WPA2/WPA2 Enterprise/WPS Working temperature 20 ℃~ 70 ℃ Storage environment 40 ℃~ 125 ℃,90%RH Package Included: 2 x ESP32 CAM Module 2 x Camera Module OV2640 2MP.
