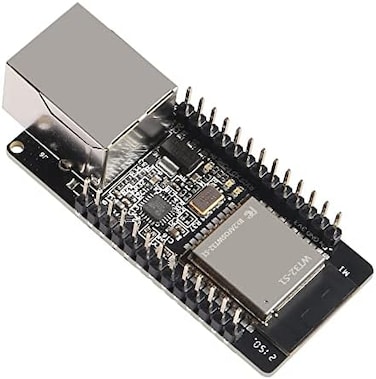

DWEII WT32-ETH01 ESP32 Module Ethernet WiFi Bluetooth Development Board WT32-ETH01 Embedded Serial Port to Ethernet Converter Serial to WiFiBluetooth MCU Module Pack of 1

Main features of WT32 ETH01 1 Adopt dual core Xtensa32 bit LX6 MCU Integrated SPI flash 332Mbit/ SRAM 520KB 2 Support TCP Server, TCP Client, UDP Server, UDP Client working mode 3 Support the four data ports of serial port, wif Ethernet andBluetooth compatible compatibleto be combined in pairs, and the data is transparently transmitted 4 Support to connect to the network through wired network or wifi to upgrade the firmware 5 Support wifi to connect to the Internet or LAN through a router, establish a TCP/UDP connection, and access the user's designated server 6 Support wired network access 7 Support user secondary development 8 Industrial grade operating temperature range: 40 85 9 Serial port baud rate: 80 5000000 10 Network protocol: IPv4, TCP/UDP 11 Software encryption: AES/RSA/ECC/SHA 33 Pin description Table 1 Debugging and programming interface Pin Name Description 1 EN1 reserved debugging and programming interface; enabled, high level is effective 2 GND Reserved debugging and programming interface; GND 3 3V3 reserved debugging and programming interface; 3V3 4 TXD reserved debugging programming interface; IO1, TXD0 5 RXD reserved debugging programming interface; IO3, RXD0 6 IO0 is reserved for debugging and programming interface; IO0.
