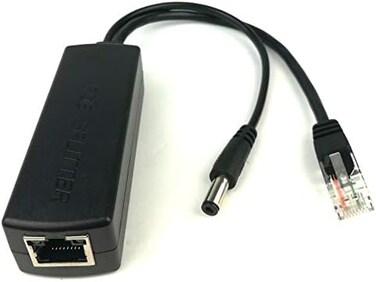

DSLRKIT DC 5V 2. 4A Active PoE Splitter Power Over Ethernet 802. 3af 5. 5x2. 1mm.

RJ45 female INPUT Port: Support the IEEE 802. 3af/802. 3at the Power over Ethernet PoE Switch Support 48V Unsolicited Power Over Ethernet PoE Switch Support 48V Unsolicited Power Over Ethernet PoE Adapter Specification: Compliant with IEEE802. 3af Isolation: 2. 5kV Power Input: DC44~57V Power Output: DC5V 2. 4Ainside positive (, outside negative (DataPower INPUT Port: from RJ45 female (Compliant with IEEE802. 3af/at PoEData Output Port: RJ45 Male Power Output Port: 5. 5x2. 1mm DC Power Plug Data Transfer Rate: 10/100Mbps Devices will be detected before poe input Power Pin:support both 1/2(/,3/6(/or 4/5(,7/8(Body size: 80 x 27x 22 mm DC cable length：165mm RJ45 Modular Plug cable length：155mm Weight : 55g Operation Temperatue:20℃ ~ 45℃ Storage Temperature:30℃ ~ 70℃ Item Included: 5. 5x2. 1mm DC 48V to 5V Active PoE Splitter x1 Notice： Yellow LED(powerwill be light up when micro USB connects to the device. Green LED(datanever light in any circumstances,two reasons are below, 1. This splitter allows data to input and output through its RJ45 port, but no indicator on this splitter indicates the status of the data transfer. Only one power indicator shows the working status of the POE. 2. due to the cost problem,the network interface component is from the universal components which own two LEDs on the market.
