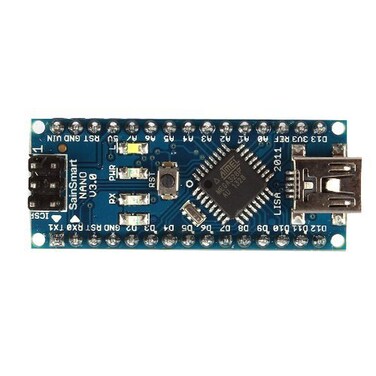

SainSmart Nano v30 Compatible with Arduino

Overview:

The SainSmart Nano V3.0 can be powered via the mini-USB connection, 6-20V unregulated external power supply (pin 30), or 5V regulated external power supply (pin 27). The power source is automatically selected to the highest voltage source.


Features:

   ● Automatic reset during program download
   ● Power OK blue LED on the bottom, Green (TX), red (RX) and orange (L) LED
   ● Auto sensing/switching power input
   ● Mini-B USB for programming and serial monitor
   ● ICSP header for direct program download
   ● Standard 0.1” spacing DIP (breadboard friendly)
   ● Manual reset switch


Specification:

   ● Microcontroller: Atmel ATmega328
   ● Operating Voltage: (logic level) 5 V
   ● Input Voltage (recommended): 7-12 V
   ● Input Voltage (limits): 6-20 V
   ● Digital I/O: Pins 14 (of which 6 provide PWM output)
   ● Analog Input: Pins 8
   ● DC Current per I/O: Pin 40 mA
   ● Flash Memory 32 KB (of which 2KB used by bootloader)
   ● SRAM 2 KB
   ● EEPROM 1 KB
   ● Clock Speed 16 MHz


Pack List:

   ● 1x SainSmart Nano 3.0 Board
   ● 1x mini USB Cable
