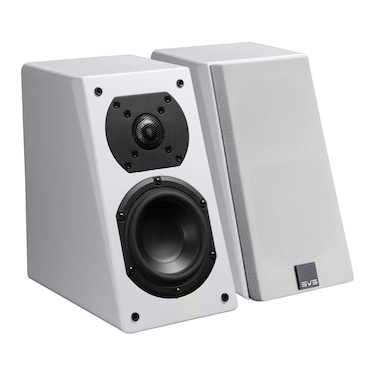

SVS Prime Elevation Surround Speakers White Gloss

The SVS Prime Elevation Surround Speaker is an incredibly versatile, 2-way loudspeaker, designed to deliver immersive audio in challenging environments. Featuring a unique angled front baffle and a multi-angle wall/ceiling bracket, it excels as a direct-radiating height effects speaker for Dolby Atmos, DTS:X, and Auro-3D, outperforming ceiling-bounce alternatives. This speaker boasts a 1-inch aluminum dome tweeter for airy highs and a 4.5-inch polypropylene mid-woofer for dynamic, accurate sound, delivering a frequency response of 55 Hz – 25 kHz (±3 dB). Its robust, acoustically optimized MDF cabinet ensures uncolored performance. With an 87 dB sensitivity and 20-150W recommended amplifier power, the Prime Elevation seamlessly integrates with other SVS Prime series speakers. Its compact size (9.4 inches H×5.44 inches W×8.33 inches D) and flexible mounting options make it ideal for any surround, height, or even front-stage application where precise placement and exceptional sound are paramount. Specifications Frequency Response / Acoustic Data - Rated bandwidth: 55 Hz-25 kHz (±3 dB) - Nominal impedance: 8 ohms. - Sensitivity: 87 dB (2.83V @ 1 meter full-space, 300-3kHz) - Recommended amplifier power: 20-150 watts. Speaker Specs - Black Ash, Piano Gloss Black and Piano Gloss White finish options - Single set of 5-way binding posts - 1” wide-?ared rear-?ring port - Cloth grille with pin/cup retention system - Magnetic SVS Logo which can be removed and oriented according to speaker application. - Elastomer stick-on bumper feet (adds 3mm to height) Unique SVS Multi-Angle Wall Bracket (patent pending) system that allows speaker to be wall mounted in any of four positions - 1/4" brass insert for use with included SVS Multi-Angle Wall Bracket and other bracket mounting systems. - Cabinet Dimensions: 9.25" (H) X 5.44" (W) X 7.88" (D) - Overall Dimensions: 9.4" (H) X 5.44" (W) X 8.33" (D) (includes grille, binding posts and bumper feet) - Overall Dimensions: 9.25" (H) X 5.44" (W) X 8.98" (D) (includes grille and SVS Multi-Angle Wall Bracket) - Shipped Dimensions: 9.30" (H) X 12" (W) X 18" (D) - Weight Unboxed: 7.8 pounds - Shipped Weight: 20 pounds Driver Specs 1” Aluminum Dome Tweeter: - FEA-optimized diffuser for airy and unveiled presentation - Aluminum dome for exceptional transient response 4.5” Midrange Driver: - Polypropylene cone for excellent stiffness/mass ratio and pistonic behavior - Aluminum shorting ring to reduce gap inductance, lower distortion, and enhance high frequency response - Cast ABS-fiberglass composite basket ensures precision component alignment and excellent thermal transfer - Vented voice coil former minimizes air compression artifacts Crossover & Cabinet Specs Crossover: - 2-way crossover with premium-grade capacitors, air-core inductors and heavy-trace printed circuit boards - Crossover network delivers outstanding phase coherency and time domain behavior - Tweeter-to-woofer crossover: 2.5 kHz (12 dB/octave slopes) Cabinet: - Acoustically transparent and FEA optimized grilles minimize diffraction - Chamfered front baf?e and ?ush-mounted drivers reduce edge diffraction and improved off-axis high frequency response - FEA-optimized cabinet and extra thick MDF bracing eliminate resonances - Angled baffle and optimized crossover combine for perfect acoustic performance at any position.
