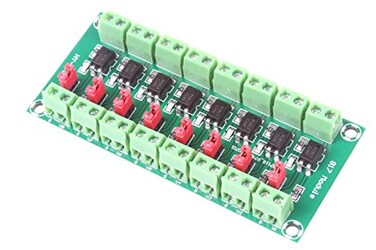

NOYITO PC817 8-Channel Optocoupler Board 3.6-30V Signal Transfer Module Electrical Isolation Board for Microcontroller Interface

AED

.42

Including VAT

Highlights

NOYITO PC817 8-Channel Optocoupler Board 3.6-30V Signal Transfer Module Electrical Isolation Board for Microcontroller Interface
This product is internationally sourced and shipped. Specifications and packaging may differ from local versions. Electronic items may include an international plug requiring a UAE-compatible adapter. Warranty, where applicable, is provided by the seller and may not be covered by the manufacturer.

Global Store

Sold & Delivered by : Desertcart

4.5

(34 Ratings)

Get It Delivered By

Free Delivery

Scheduled

4 Nov - 6 Nov

Ships from outside the UAE.

Description

Input Output Range Drive terminal signal voltage 3.6 24V DC. Output terminal voltage range 3.6 30V DC Max output current 10mA. Total power constant, voltage and current inversely proportional. Voltage Level Control Supports 3.3V or 5V control signals to switch 3.6 30V loads. When the control terminal is activated, the controlled terminal correspondingly activates. Channel Isolation Uses separate PC817 optocoupler chips per channel 4 channels separated, allowing simultaneous control of different voltage circuits without electrical connection. Physical Specifications Board size 84mm x 38mm L x W. Mounting holes 78mm long side, 32mm wide side. Package includes 1x NOYITO PC817 8 Channel Optocoupler Board. Signal Frequency Note Designed for DC or low frequency 4kHz pulse signals. Do not use with control signals exceeding 4kHz the module will not operate as expected
