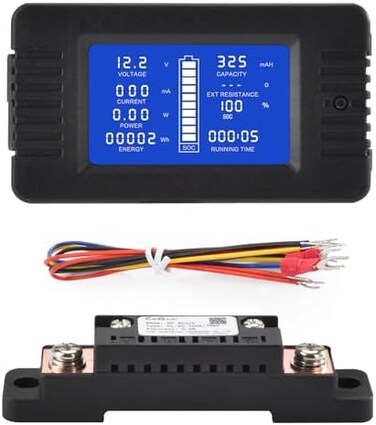

CGELE DC Multifunction Battery Monitor Meter with Shunt,0-200V,0-100A, LCD Display Digital Current Multimeter Voltmeter Ammeter for Cars RV Solar,Widely Applied to 12V/24V/48V RV/Car Battery….

CGELE Battery Monitor Meter Voltage Measuring range: 0200V Display format:10V, display 9. 99V;100V, display 99. 9V; ≥100V, display 199V Minimum Resolution: 0. 01V Measurement accuracy: 1% Current Measuring range: 0100A Display format:1A, display 999mA;10A, display 9. 99A;100A, display 99. 9A; ≥100A, display 199A Minimum resolution: 1mA Measurement accuracy: 1% Power Measuring range: 060000W Display format:10W, display 9. 99W;100W, display 99. 9W;1000W, display 999W;10000W, display 9. 99kW; ≥10000W, display 19. 9kW Minimum resolution: 0. 01W Measurement accuracy: 1% Impedance Measuring range: 01000Ω Display format:100Ω, display 99. 9Ω; ≥100Ω, display 999Ω When over the test range or the current is zero ,it displayed. Minimum resolution: 0. 1Ω Measurement accuracy: 1% Internal Resistance Measuring range: 0999mΩ Display format: 999mΩ, when over the test range or the current is zero, it display “”. Minimum resolution: 1mΩ Measurement accuracy:1% Display format:1AH display 990mAH;10AH display 9. 90AH;100AH display 99. 9AH;1000AH display 999AH; Minimun resolution: 1 mAH Measurement accuracy:1% Energy Measuring range: 09999kWh Display format:1kWh display 999Wh;10kWh display 9. 99kWh;100kWh display 99. 99kWh;1000kWh display 999. 99kWh;≥1000kWh display 9999kWh Minimum resolution: 1Wh Measurement accuracy:1% Running time Measuring range: 0999 hour Display format: 0:00:00 999:59 Notice 1. This module is suitable for indoor, please do not use outdoor 2. Applied load should not exceed the rated voltage, current. 3. Wiring order cant be wrong Package 1 * Battery Monitor Meter 1 * DC 100A Shunt 6 * Wire 1 * Instruction manual.
