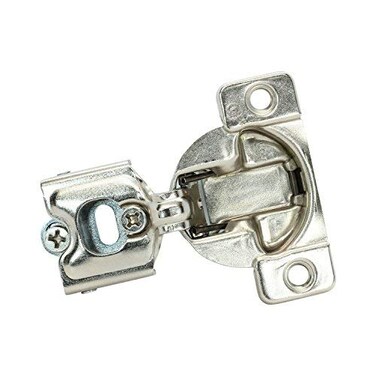

Rok 25 Pack Hardware Grass TEC 864 108 Degree 14 635mm Overlay SELF Close ScrewOn Compact Cabinet Hinge 0439615 3Way Adjustment G0439615

GRASS TEC 864 SELFCLOSE Cabinet Hinge DOOR WILL SLAM SHUT MADE IN THE USA NOTE SELF CLOSE means when you close the door and it gets within 2 of closing it will pull itself close because of the spring in the hinge itself It is different from SOFT CLOSE wherein the door gets about 2 away from closing and then slows itself to softly close 3Way Adjustable In and Out Cam Adjustment 108 Degrees Opening Angle Comes with side height and depth adjustments to make installation a much easier process 14 in 635mm overlay selfclosing hinge Hinge Cup Boring Diameter 35mm Recommended Drill Bit ROKBB35BLUE Screw on wraparound mount cabinet hinge Includes 2x 6 x 58 Wood Screws and 1x 10 x 34 Wood Screw The Grass face frame TEC 864 Series hinge line is engineered to exceed industry standards for load rating opening and closing cycles All TEC 864 hinges feature a solid metal cup and all moving mechanism parts have allsteel construction.
