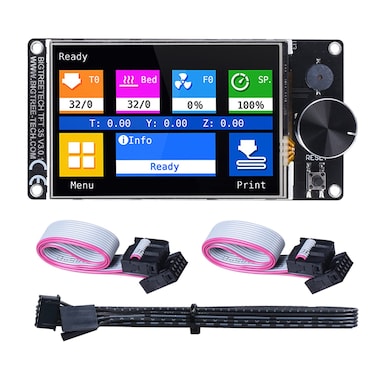

BIGTREETECH Direct TFT35 V3.0 Upgrade Touch Screen Controller Display with WiFi Port for SKR Mini E3 and SKR E3 3D Printer Motherboard

TFT35 V3. 0 instruction manual://github /bigtreetech/BIGTREETECH-TFT35-V3. 0 TFT35 V3. 0Wifi User Guige://github /bigtreetech/BIGTREETECH-TFT35-V3. 0/blob/master/BIGTREETECH%20TFT35%20V3. 0/Hardware/TFT3. 5%20V3. 0-WIFI%20User%20Guide. pdf Product introduction TFT35 V3. 0 is a medium size, dual-mode, ultra-clear 3D printer display, It is an excellent replacement for the standard 12864 LCD displays, Main features 1, ARM Cortex-M3 series STM32F207VCT6 chip with 32-bit CPU 120 MHz, 2, Users can select two work modes, they are UART serial port screen mode and 12864 screen mode, 3, Upgrade the firmware by SD card, It is easy and convenient to operate, 4, Serial port screen mode supports two printing modes: SD card and USB stick, 5, Dedicated WIFI port, WIFI function is realized by external WIFI module, 6, Dedicated filament breaking detection port, FIL-DET pin, 7, Dedicated port for automatic shutdown after printing module, PS-ON pin, 8, LCD12864 mode uses EXP1, EXP2 and EXP3, EXP1 and EXP2 are LCD screen ports of normal motherboard, EXP3 is the LCD screen port used by SKR MINI E3 and SKR E3 DIP, 9, TFT touch screen mode uses serial port screen RS232 port, 10, Two sets of UART serial port extension ports are reserved for DIY use, Board specifications 1) Size: 110x58mm 2) Input voltage: 5V DC 3) Installation size:103. 76 * 49. 43 mm 4) SD card logic voltage: 3. 3V or 5V, supports MEGA2560 motherboard, with higher compatibility.
