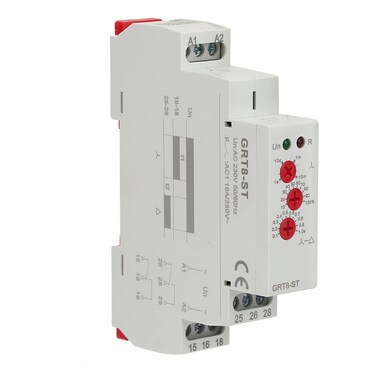

YWBL-WH GRT8-ST Delay On Timer Soft Starter, Electronic Timer Delay Motor Starter Control, AC/DC12V~240V

AED

285

.95

Including VAT

Highlights

This product is internationally sourced and shipped. Specifications and packaging may differ from local versions. Electronic items may include an international plug requiring a UAE-compatible adapter. Warranty, where applicable, is provided by the seller and may not be covered by the manufacturer.
YWBL-WH
Black Or White
Material
0. 05 Kilograms
1. 8D x 8. 9W x 6. 4H Centimeters

Sold & Delivered by : ShiftPlus

Get It Delivered By

Free Delivery

Wed, Nov 11th - Thu, Nov 12th

Description

Specification: Type: AC/DC12V240V, AC380V,AC400V, AC415V, A230(Optional) Power terminal - Rated control power supply voltage: AC/DC 12-240v (50/60hz) Power consumption :AC 0. 7-3VA/DC 0. 5-1. 7W Power supply allowable fluctuation range: -15%.10% Power indicator: green LED Starting delay: 0. 1s-10min. conversion delay: 0. 1s-1s Setting mode: knob Setting accuracy: 5% Repeat accuracy: 0. 2% Temperature fluctuation error: 0. 05%,at=20 Output: two sets of conversion contacts 16A/AC250VAC Minimum switching power: 500mW Output relay indication: red LED Mechanical life: 1 x 10000000 electrical (load) :1000000 Reset time: 200ms maximum Working environment temperature: - 2055 Storage and transportation environment temperature: - 3575 Installation: 35mm rail mounting level: Ip20 Installation location: any Installation altitude: 2000 meters Pollution level: 2 Wiring capacity: 1x2. 5mm²or 2x 1. 5mm² Dimensions: 90*18*64mm/3. 5*0. 7*2. 5in Conforming to the standard: GB14048. 5. IEC/EN 60255-1 Weight: Approx. 96g/3. 4oz Package list: 1 x Timer Soft starter.
