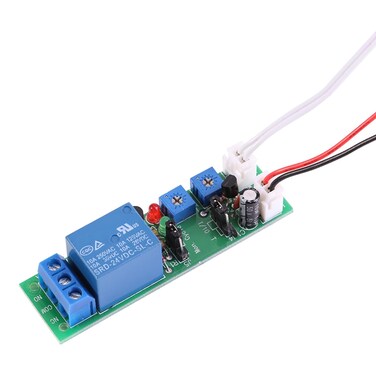

YWBL-WH Adjustable Cycle Timer Delay Module, DC 5V 12V 24V On/Off Switch Relay Module for Machine Repetitive Test

AED

138

.10

Including VAT

Highlights

This product is internationally sourced and shipped. Specifications and packaging may differ from local versions. Electronic items may include an international plug requiring a UAE-compatible adapter. Warranty, where applicable, is provided by the seller and may not be covered by the manufacturer.
712979481864
YWBL-WH
1. 0 Count
0. 79 Inches

Sold & Delivered by : ShiftPlus

Get It Delivered By

Free Delivery

Sat, Nov 7th - Mon, Nov 9th

Description

Specifications: Type: DC5V,0-30min/DC5V,0-24hr/DC12V,0-120min/DC12V,0-24hr/DC24V,0-15min/DC24V,0-30min (Optional) Quiescent Current: <10mA Dynamic Current: 45mA@12V. 90mA@5V. 30mA@24V Contact: 1 group NONC Load Capacity: 10A(AC0-250V, DC0-30V Size: 70×20×18mm / 2. 75×0. 78×0. 7" Time Accuracy: Max value*0. 001 Mon. Mode: 1. The module Power-on, When triggered the relay is switched on, timer delay off. 2. When triggered on the delay process, again triggered, it will immediately interrupt the delay. Cycle Mode: 1. The module Power-on, When triggered the relay is switched on, (T1) timer delay off. (T2) timer delay on. Such cycle. T1 and T2 are set by two adjustable resistors, respectively. Package Includes: 1 × Timer Relay Module.
