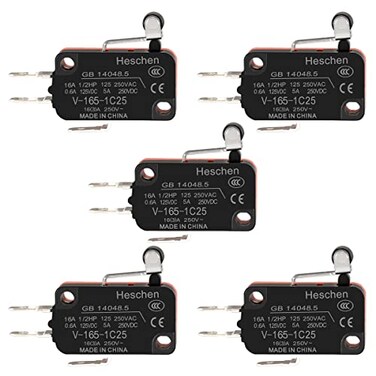

Heschen 5 Pack Micro Switch 16A 1/2HP 125/250VAC Short Roller Lever

[SHORT ROLLER LEVER ACTUATOR] Features a Short Roller Lever actuator designed to minimize mechanical friction. Perfect for sliding, cam, or limit operations in tight spaces where target objects pass over the switch, ensuring smooth and rapid actuation, [HEAVY DUTY 16A RATING] Rated Working Current: 16A 1/2HP at 125/250VAC, 0. 6A at 125VDC, and 5A at 250VDC. An exceptionally heavy-duty V-165-1C25 replacement micro switch compatible with high-current household appliances, industrial machinery, and DIY automation projects, [SPDT 3-PIN CONFIGURATION] Designed with an SPDT (Single Pole Double Throw) contact form, supporting 1NO (Normally Open) and 1NC (Normally Closed) circuitry. Easy to wire with the clear "COM, NO, NC" diagram engraved on the switch housing, [3/16" QUICK CONNECT & LOW RESISTANCE] Equipped with standard #187 male bolt terminals (4. 8mm / 3/16 inch width). Delivers exceptional conductivity with an ultra-low contact resistance (15mOhm Max initial value) and premium heat resistance up to T105 degrees Celsius to prevent shell melting during terminal soldering, [10 MILLION CYCLES INDUSTRIAL LIFESPAN] Built to outlast standard switches with a mechanical life of over 10,000,000 operations and an electrical life exceeding 300,000 operations under resistive loads. Features a high-strength flame-retardant shell that withstands up to 6KGF. CM torque to prevent cracking during installation. Package Content: 5 PCS.
