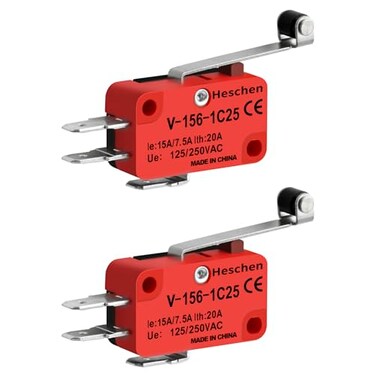

Heschen 2 Pack Micro Switch 15A 125/250VAC, Roller Lever

[ROLLER LEVER ACTUATOR] Features a Roller Lever actuator designed to minimize mechanical friction. Ideal for slide, cam, or limit operations where target objects pass over the switch. Delivers high precision with an operating force (OF) of 125g (1. 23N) max and a reliable snap-action mechanism, [HEAVY DUTY RATING & EXACT COMPATIBILITY] Rated Working Current (Ie): 15A at 125VAC / 7. 5A at 250VAC, with a Thermal Current (Ith) of 20A. Perfect heavy-duty V-154-1C25 replacement micro switch compatible with household appliances, interlocking circuits, and DIY automation projects, [SPDT 3-PIN CONFIGURATION] Designed with an SPDT (Single Pole Double Throw) contact form, supporting 1NO (Normally Open) and 1NC (Normally Closed) circuitry. Easy to wire with the clear "COM, NO, NC" diagram engraved on the switch housing, [3/16" QUICK CONNECT TERMINALS] Equipped with standard #187 male bolt terminals (4. 8mm / 3/16 inch width). Delivers excellent conductivity with low contact resistance (25mOhm initial value) and high insulation resistance (>100M Ohm DC500V), [INDUSTRIAL GRADE DURABILITY] Housed in a premium thermosetting plastic crust that is highly resistant to heat during terminal soldering. Built to last with a mechanical life of over 1,000,000 operations and an electrical life exceeding 100,000 operations. Package Content: 2 PCS.
