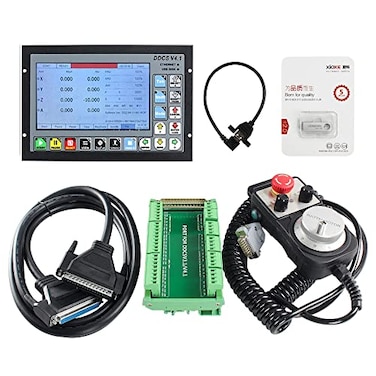

CNCTOPBAOS 4 Axis 500KHz CNC Offline Controller DDCSV41Stand Alone System Motion Controller PLCSlave Stepper Servo Motor ControlMPG Handwheel for CNC RouterLatheEngraving Milling Machine

AED

2,857

.00

Including VAT

Highlights

This product is internationally sourced and shipped. Specifications and packaging may differ from local versions. Electronic items may include an international plug requiring a UAE-compatible adapter. Warranty, where applicable, is provided by the seller and may not be covered by the manufacturer.
CNCTOPBAOS 4 Axis 500KHz CNC Offline Controller DDCSV41Stand Alone System Motion Controller PLCSlave Stepper Servo Motor ControlMPG Handwheel for CNC RouterLatheEngraving Milling Machine

Global Store

Sold & Delivered by : Desertcart

4.2

(19 Ratings)

Get It Delivered By

Free Delivery

Scheduled

3 Oct - 6 Oct

Ships from outside the UAE.

Description

Model Number DDCS V41 7 inches TFT screen resolution ratio 1024x600 17 operation keysDifffferential Mode and Double Pulse Mode output signal for optional Maximum interpolation pulse output frequency is 500KhzAxis 24 Axis linear interpolation any 2 axis circular interpolation Feature ARM9 main control chipFPGA core algorithm chip18 photoelectric isolated digital inputs3 photoelectric isolated digital outputs The spindle can be confifigurated as Analog spindle 010V and also servo spindle Slave function Slave X Slave Y Or Slave Z for Gantry machine with two independent motors on main axis Power requirements The Power Supply for IO Port is 24VDCminimum current is 05A the Power Supply for Control ler system is also 24VDCminimum current is 05A Controller needs both power to work properly Support G code file USB flash disk support for G code file input Can transfer the files by Ethernet communication between the computer and DDCS V41 controller No size limited of the Gcode file.
