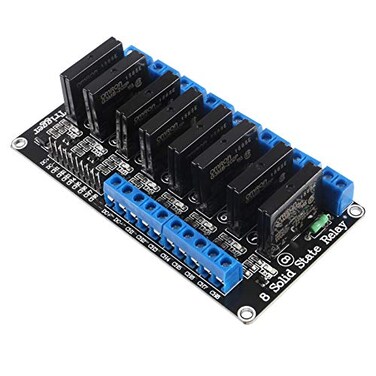

AITRIP 1PCS 8 Channel 5V Solid State Relay Module Board High Level Trigger Compatible with Arduino Uno Duemilanove MEGA2560 MEGA1280 ARM DSP PIC ,1PCS

AED

.29

Including VAT

Highlights

This product is internationally sourced and shipped. Specifications and packaging may differ from local versions. Electronic items may include an international plug requiring a UAE-compatible adapter. Warranty, where applicable, is provided by the seller and may not be covered by the manufacturer.
AITRIP 1PCS 8 Channel 5V Solid State Relay Module Board High Level Trigger Compatible with Arduino Uno Duemilanove MEGA2560 MEGA1280 ARM DSP PIC ,1PCS

Global Store

Sold & Delivered by : Desertcart

4.4

(27 Ratings)

Get It Delivered By

Free Delivery

Scheduled

22 Oct - 24 Oct

Ships from outside the UAE.

Description

Solid State Relay Module Board has been assembled, and electrical test passed, Led indicator for each relay, Size: 155 x 55 x 24 mm (approximately 6. 1 x 2. 17 x 0. 95 inch), Has been assembled, and electrical test passed. Led indicator for each relay. Size: 155 x 55 x 24 mm (approximately 6. 1 x 2. 17 x 0. 95 inch) Input control signal voltage: 0V - 0. 5V Low stage (SSR is OFF), 0. 5V - 2. 5V (unknown state), 2. 5V - 20V High state (SSR is ON); SSR Output (each channel);, Load voltage range: 75 to 264VAC (50/60Hz); Load current: 0. 1 to 2 AMP Standard interface that can be controlled directly by microcontroller (Compatible with Arduino, 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic).
