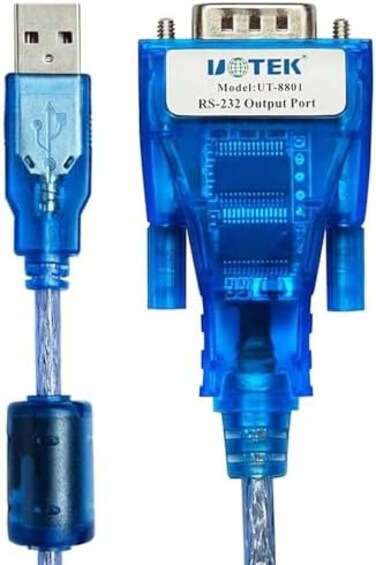

UOTEK UT-8801 USB to RS-232 Converter ver2.0(1-port USB to RS-232 Serial Converter with ESD protection)

Overview UT-8801 is an universal USB/RS232 converter.Compatible with USB/RS232 standards, without any external power, it can convert the single USB signal to RS232 signal.Built-in zero-delay automatic transceiver and unique I/O circuit can control data flow direction automatically and plug & play.Standards: conforming to USBV1.0, 1.1 and 2.0 and EIA RS-232.USB signals: VCC, DATA+, DATA-, GND and FG.RS-232 signals: DCD RXD TXD DTR GND DSR RTS CTS RI Working mode: asynchronous point-to-point.Direction control: adoption of automatic data stream control for automatic recognition and control of data transmission direction.Baud rate: 300-921.6Kbps, automatic detection of the transmission rate of the serial interface signal.Transmission distance: 5 meters for RS-232 and less than 5 meters for USB.Interface protection:+/-15KV electrostatic protection.Interface forms: B interface female connector and DB9 male connector for USB.Signal indication: 9 indicator lights for Power (PWR), Send (TXD) and Receive (RXD).Transmission media: twisted-pair cable or shielded cable.Dimensions: 1530mm x 33mm x 16mm.Working environment:-25 to 70, relative humidity 5% to 95%.Windows95/98/2000/XP/Vista and IMAG are supported.Both BUS and external power supply are supported.Application fields: Factory automation system Distributed control system Other RS232/485/422 serial device wireless network LED INFO display equipments PLC control and management SCADA, measuring instruments and monitoring system CNC management Medical treatment/medication automation Building automation Check on work attendance/ Human resource management Original Packing Included 1 x UT-8801 USB to RS232 Converter (USB V2.0, Active screw) 1 x CD Driver'
