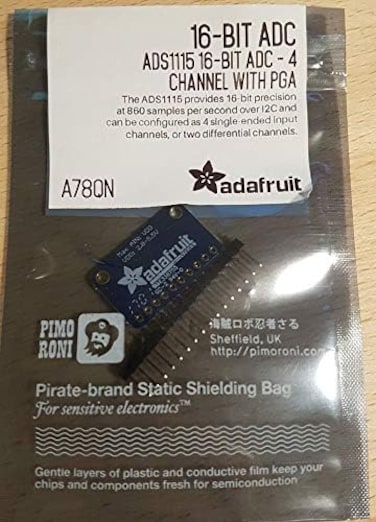

Adafruit ADS1115 16-Bit ADC - 4 Channel with Programmable Gain Amplifier

ADS1115 4-Channel ADC Converter DESCRIPTION The ADS1115 offers analog to digital conversion with 16-bit accuracy and up to 860 samples per second, ideal if your microcontroller does not have analog-to-digital conversion or if you need a very accurate conversion.The chip can be configured to be usable with 4 separate inputs or 2 differential inputs, it also has a level amplifier (up to x16), which is very convenient if you have to process weak signals.The module can work with logic and power supply ranging from 2 to 5.5VDC, which makes it very convenient to use regardless of the situation.The module has ferrites to reduce input noise.The interface is done in I2C with 4 available addresses, so it is possible to chain 4 modules on the same I2C, i.e.16 possible inputs.TECHNICAL FEATURES Power supply: 2 to 5.5VDC Low power consumption (150µA in continuous mode and standby mode available) Programmable sampling rate from 8 to 860 samples per second 4 single inputs or 2 differential inputs 7-bit I2C protocol with 4 available addresses Dimensions: 25.4x17.8x4.6 mm Weight: 1.7 g LINKS /TUTORIALS ADC Converters Tutorial (English)//learn.adafruit.com/adafruit-4-channel-adc-breakouts/://learn.adafruit.com/adafruit/Adafruit_Python_ADS1X15 Bookstore for Arduino//github.com/adafruit/Adafruit_ADS1X15 '
