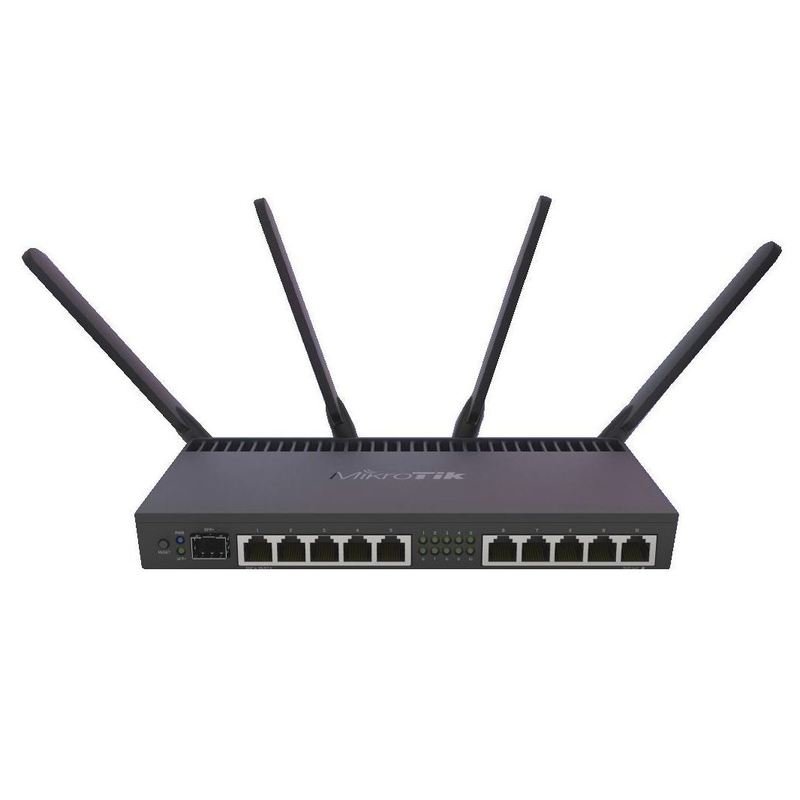

Mikrotik Microtik Routerboard Rb4011Igs + 5Hacq2Hnd-In

System solutions for MikroTik platforms for wireless Internet providers.

The new model of the new RB4011iGS + 5HacQ2HnD-IN series has four 1400 Mhz cores with integrated hardware acceleration.

Integrated 2.4 GHz and 5 GHz dual band band with support for 4x4 MIMO and 10 Gbit ports with 10Gbps extension over SFP + port.

The RB4011iGS + 5HacQ2HnD-IN can route up to 2.5 Gbps, thanks to its integrated accelerator, the AES-256-CBC + SHA256 robust tunnel has up to 2 Gbps throughput.

In switch mode, RB can handle data transfer rates up to 9.7 Gbit. It is so ideal when combined with a 10 Gbps miniGBIC module that can be used to extend RouterBoard within an integrated SFP + port.

Yes ther advantage is support for the 802.11ac standard, which together with 4x4 MIMO technology enables wireless transfer at speeds up to 1733 Mbps.

It also supports the 2.4 GHz band with speed up to 300 Mbps.

RouterBoard is equipped with 3 dBi antennas (4x 5 GHz, 2x dual band 2, 4GHz) and has an output power of up to 33 dBm.

RB4011iGS + 5HacQ2HnD-IN offers:

both inbound and outbound firewalls

VPN concentrator

CAPsMAN server

advanced NAT

home AP 2.4 to 5 GHz radio and support transmission speeds up to 1733 Mbps

client/server tunnels L2TP, IPsec, OpenVPN, PPTP, STTP, PPPoE, EoIP

simple and advanced speed limitations through Queues and service prioritization

Dynamic routing of BGP, OSPF, RIP, MPLS and more

end of optical path 1/10 Gbps

switching and bridging

IPv6 network

Technical Specifications:

Operating mode: AP, Client, WDS, Bridge, WISP

Frequency (GHz): 2.4, 5

Transmission speed up to (Mbps): 1733

Standards: 802.11a/b/g/n/ac

Power regulation: yes

Max. output power (dBm): 33

Sensitivity (dBm): - 100 (1 mbps) to - 72 (MCS9) dBm

LAN port: 10x 10/100/1000 Mbit/s Gigabit Ethernet, Auto-MDI/X

Default Name: admin

Firewall: Yes

Interface: LAN

Gain (dBi): 4x 3 dBi

Processor: AL21400 1.4 GHz with hardware encryption

RAM (MB): 1000

NAND (MB): 512

Weight (kg): 1.18

I/O Control: Yes

LED indication: yes

OS: Mikrotik v6 - RouterOS Level 5

IPv6 support: Full

Height (mm): 30

Width (mm): 228

Depth (mm): 120

Power max (jack) (V): 230

Power Min (PoE) (V): 12

Power max (PoE) (V): 57

Operating temperature min (° C): -20

Operating temperature max (° C): 60

Notice:

MIKROTIK is not subject to warranty on equipment damaged by overvoltage.

The equipment should be adequately protected at the inputs against induced electrostatic overvoltage or overvoltage peaks on the power line.

For outdoor installations, shielded cabling (FTP/SFTP), appropriate overvoltage protection (if not integrated) and correct and efficient grounding are required.

Failure to follow the prescribed installation procedures risks irreversible damage to the active element (burning the ethernet chip, damage to the miniPCI radio module).
