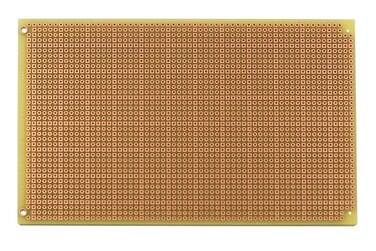

PAD3U PadBoard3U Pad per Hole 2 Sided PCB Plated Holes 394 x 630 in 100 x 160 mm

The PadBoard-3U prototyping circuit board has a general purpose pad-per-hole pattern which is good for general purpose analog and digital use. It is a double-sided board with plated holes, which allows components to be soldered to either side of the board. A square pad is provided every 5th hole, which makes it easy to align components on the top and bottom of the board. The PCB accepts a 96 pin DIN-41612 VME connector for backplane or board-to-board applications. Holes for ejector latches are provided.
