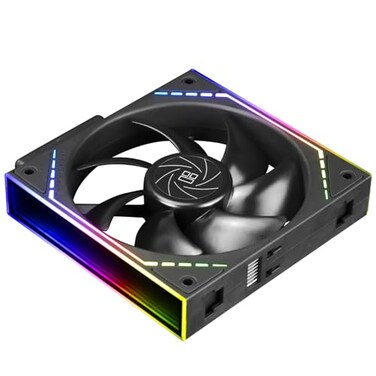

Thermalright TLM12Q Case Fan120mm QuietPWM FunctionInfinity Mirror ARGB Lighting EffectsWireless Splicing Building Block CPU FanNew Power Chip Module Simplifies Wiring Management2000RPM

Positive Air Outlet Design The fan blades of the M12Q series rotate clockwise with the blade facing the inlet direction providing a speed of 2000RPM and serving as the exhaust fan for the case Silent Fan Parameters cpu Fan size 124x120x25mm speed 2000RPM10 noise282DBA air volume 689CFM wind pressure 221mm H2O power supply interface 4PIN PWM light interface 5V 3PIN voltage DC 12V current 017A higher air flow can improve cooling performance and keep the fan low noise PWM Intelligent Temperature Control The cooler fan has a PWM temperature control function after connecting the fan to the interface of the motherboard there is no need to manually adjust the speed the fan can automatically set the speed according to the temperature Detail Optimization The argb fan is made of UL CLASSA insulation grade industrialgrade strength PBTPC material which supports PWM series control of the fan and the power supply interface is 4pin PWM and the lighting interface is 3pin ARGBFans of the same type are connected in series through buckles and then connected to the corresponding interface of the motherboard through connectors that fasten the wires Wireless Splicing The new power chip module cable simplifies the cable management reduces the cumbersome internal wires of the chassis and provides powerful power for the fan and the signal and power are transmitted between the fans through the contacts Note The cable of the control cable needs to be connected to the side of the fan with pins do not connect to the other side.
