Aten HDMI Extender At 120M, Over Ip

PremiumCord HDMI extender to 120 meters over a LAN over IP, with IrDA transmission allows one transmitter and multiple receivers

The device enables one network cable or through a LAN network to transfer HDMI FULL HD signals up to 120 meters, while the control signals IR remote control

Extender allows the use of one transmitter and multiple receivers are interconnected via a LAN network switches and routers (tested on a FULL HD 1080p and 100m of cable + swich + 2 receivers) this computer network should be reserved only for HDMI extenders may not share other computers, printers and other network devices.

Supports Full HD 1080p up to 120 meters

Allows one transmitter and multiple receivers on a dedicated LAN

Supports HDMI 1.3 and HDCP 1.2 format

For the resolution: 480i @ 60Hz, 480p @ 60Hz 576i @ 50Hz, 576p @ 50Hz, 720p @ 50/60Hz, 1080i @ 50/60Hz, 1080p @ 50/60Hz

Supports video format: 24bit/Deep color 30bit/36bit deep color

Audio format: PCM

Supports Audio: DTS-HD/Dolby True-HD/LPCM7.1/DTS/Dolby-AC3/DSD

Bit rate: 10.2Gbps

HDMI Extender transmits digital video, and audio.

LAN cable TIA/EIA568 B

It is recommended to connect a LAN cable-quality Cat5e, Cat6, Cat7

The transmitter and receiver are powered from the attached power adapter 230V/5V 1A

The transmitter and the receiver has a convenient reset button

The transmitter and receiver are LED that indicates when the unit together and is transmitting the signal.

Recommended input and output HDMI cables shorter than 5 meters

Transmitter Dimensions: Length: 110 mm Width: 57 mm, height: 25mm

Receiver dimensions: length 110 mm, width 57 mm, height: 25mm

Weight: 126 g

In the package:

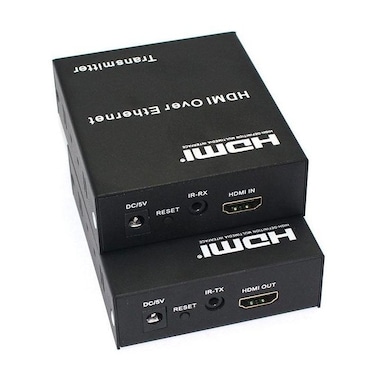

1x Transmitter unit

1 Unit Receiver

2 IR cable

1x manual

2x power adapter
