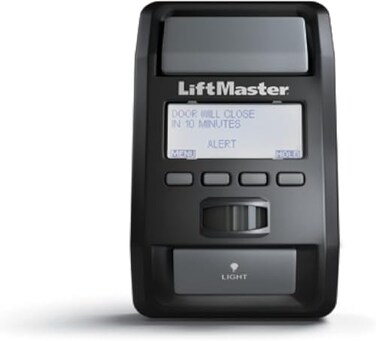

LiftMaster 880LM Motion Only Works with LiftMaster Security 20 Garage Door Openers Detecting Control Panel Features MenuDriven Panel and TimertoClose

Compatible and works only with LiftMaster Security 20 garage door openers and gate operators with myQ logo and yellow learn button Wired Connection Connect the wire to the red and white terminals on the garage door opener The wires can be connected to either terminal To insert or release wire push in tab with screwdriver tip Light Feature The lights will turn on when someone enters through the open garage door and the safety reversing sensor infrared beam is broken If using the garage door opener light as a work light turn the light on using the light button on the wall control or the light will turn off if you are beyond the range of the sensor Also the LIGHT button will not control the lights when the door is in motion WiFi Setup Note If WiFi option is not listed your garage door opener is not WiFi compatible Select MENU Select PROGRAM Select WiFi SETUP When ON is displayed you may begin WiFi setup Multifunctional Control Panel Allows to view inside garage temperature time and system diagnostics easily.
